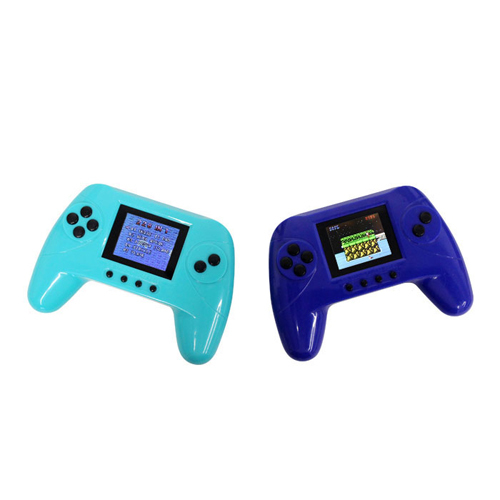

Mini Handheld Game Console Suppliers CT505

The Detailed Information

1.Preparation before production: material procurement and material QC inspection

First of all, we will purchase some materials that need to be produced in the manual, plastic, and packaging boxes in strict accordance with environmental standards. And we have many years of cooperation experience with suppliers. Then hand over the purchased materials to the QC department for inspection of incoming materials. For example, in the manual, we will check whether the contents are correct, and whether the package box will be weak and easily damaged, etc. Our QC department will strictly control the incoming materials. If any bad problems are detected, they will not be placed on the production line. Only after qualified into each department production.

2.In Production:

(1) Plastic case :

The plastic case of this game arcade is produced with a medium-sized injection molding machine. The raw material used is ABS plastic. Because this material has excellent impact strength, protects the internal components inside the game machine, and has good stability and wear resistance, the casing will not be easily damaged.

First, we must order the raw materials, and then install the mold of the game machine casing onto the injection molding machine for debugging. If there is no problem after debugging, the color is selected according to the international color number. The previous steps are determined and will begin to come to the plastic injection.

Pour the prepared ABS material into the injection molding machine for high temperature melting. After 2-3 hours, the model of the casing is fixed, the indicator light of the injection molding machine will light up. At this time, the good casing can be taken off the machine. The temperature of the removed shell is very high, so it must be cooled by cold water to better fix the shape of the case. After cooling, cut and smooth the trim around the casing to ensure the smoothness of the casing. Finally, the good case is sent to the QC inspection, and after inspection, it will be sent to the production department for assembly.

PCBA board: First, send the purchased motherboard to the SMT department, attach some small electronic materials to the PCB board through the placement machine, and fix them by reflow oven.Then the game machine’s brain CPU through solid crystal machine fixin Next, enter the function of the game console through the binding machine. Then use the test rack to test the board’s game function. If there are defective products, they will be picked out for repair. Finally, the CPU is sealed with black glue and placed in the oven for high temperature fixing. Finally, the CPU is sealed with black glue and fixed in the oven at a high temperature to protect the chip inside. The PCBA board has the main function of the game console.

3. Assembly:

The internal assembly: First, the workshop worker plugs the plug-in into the PCBA, the plug is then hardened and fixed in a furnace at temperatures up to 260°-300°.Then go to the cutting area to cut off the leftover material of the plug-in, and polish the PCBA through the automatic tin stove. After that, the horn and the positive and negative aluminum sheets of the battery, the main board and the sub board connected by the FPC cable are welded. Finally, perform a PCBA function and button test.

The external assembly: Firstly, add a layer of PVC lens to the display to protect the display，and assemble the buttons and other parts into the case. Then close the lid and screw it. The next step is to install the battery to test the machine, and then stick the sticker on it after the test is correct. Finally, there is a 100% inspection in production. During the production, the quality department will check the already produced game machine according to the requirements of the customer and the requirements of our factory. If there are any problems, they will be reported to the production department immediately to reduce the errors. After all the machines produced have no problems, the game console will be sent to the packaging department for packaging.

4. Packaging:

First, the game machine assembled in the production department is sent to the packaging department. The workers will check the appearance of the game machine before putting it into the blister box. The blister box is made of PVC material, which can hold the weight of the game machine very well. Then put the manual and the environmental card into the box, and finally pack and seal it. The final sealing and warehousing is carried out after all the steps have been confirmed.

Extend The Life of The Game Console

• Take out the battery when you are not playing, and avoid the corrosion of the battery inside the positive and negative aluminum sheets.
• Place it in a room with proper ventilation and temperature to prevent the electronic components inside from being damaged by moisture and moisture.
• Don’t put it in a place with a lot of dust, otherwise the horn will be affected and the sound will be harsh.
• If the shell of the game machine gets a little stain, you can dip it in a paper towel and wipe it.

Our Service

(1) About the Factory: We are a children’s toy manufacturer with 16 years’ experience, and we have the certification of ICTI, BSCI, Disney and EN71, CE, EMC and other products.

(2) About Transaction : We can support T/T, Paypal, L/C and other payment methods.

(3) About Transportation: We can support shipping (EXW, FOB Shenzhen), air transportation (DHL, UPS, FedEX ect), railway transportation.

(4) About the Delivery Date: First, the products in stock are generally available for delivery in about 7 days. Second, if it is OEM & ODM products, our delivery is generally 30-45 days after receiving the deposit.

(5) About Warranty: Our product warranty period is six months or one year. If there are any quality problems in the product during this year, we can support repair or replacement.
